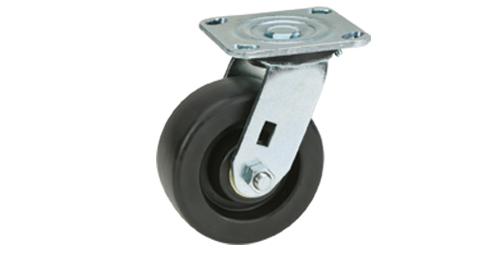

6600 SERIES HEAVY DUTY CASTERS
  • Load capacity up to 900 lbs. per caster.
  • Case hardened double ball raceways provide extra capacity and durability.
  • Top plate and yoke material is 1/4 " (6mm) cold forged steel.
  • Corrosion-resistant zinc plated finish.
  • 5/8 " (16mm) nut and bolt kingpin, 2-1/2" (64mm) fork spacing.
  • 1/2 " (13mm) zerk axle and lock nut on caster sizes 4" (102mm) to 8" (203mm); 5/8" (16mm) axle on 3" (76mm) casters.
  • Zerk fittings in swivel bearings and most wheel axles.

6600 BRAKE OPTIONS

When ordering, add brake abbreviation to end of caster part number.

Specifications

See Additional Information.

Additional Info
6600 Heavy Duty
