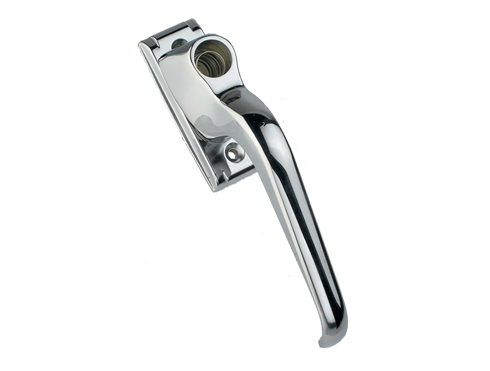

3168 REMOVABLE CYLINDER HANDLE

  • Easy cylinder change-out while handle is mounted
  • Select from stationary (S) or push (P) cylinder
  • Re-key any handle in this new system by inserting a new cylinder of the desired key number
  • Handles are compatible with all existing Kason sliding and rear door inside latches
  • Available in polished chrome or durable powder coat finish. Powder coat is recommended for use in extreme environments

U.S. Patent Number: 6,178,789

Specifications

HANDLE

MATERIAL - Die-cast zinc handle and plate

FINISH - Polished chrome. Powder coat recommended for severe environmental applications

STYLES - Side door handles available in paddle or grab style; inter-changeable with standard cylinder handles

OTHER - Accepts stationary (S) or push (P) cylinder; field changeable.

CYLINDER

TYPE - Stationary (S) or push (P) cylinder

FABRICATION - Stainless steel scalped; per-lubricated; shuttered key-way for better over-the-road dirt resistance and long life.

KEYING - May be keyed alike or differently. Up to 50 key numbers available, consult factory for availability.

HOW TO ORDER

Handles, cylinders and cylinder removal tool are ordered separately. See catalog for more information.
