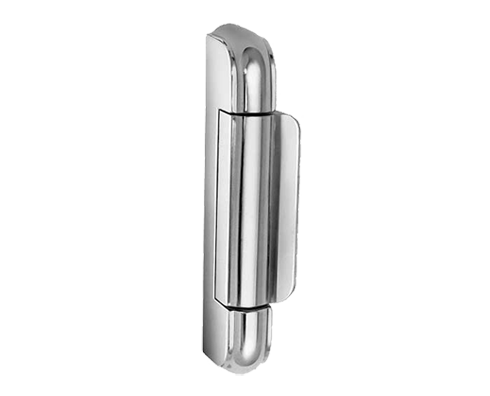

0212 ADJUSTABLE HINGE

  • Positive adjustment compensates for gasket wear
  • Interchangeable for right or left-opening door

US Trademark: 2,374,415

Specifications

MATERIAL

High pressure, die-cast zinc flange; brass cover, zinc plated steel strap.

FINISH

Highly polished chrome.

OFFSETS

See ordering information.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

20 each

WEIGHT

Approx. 11 lb. (5.0 kg) per carton
