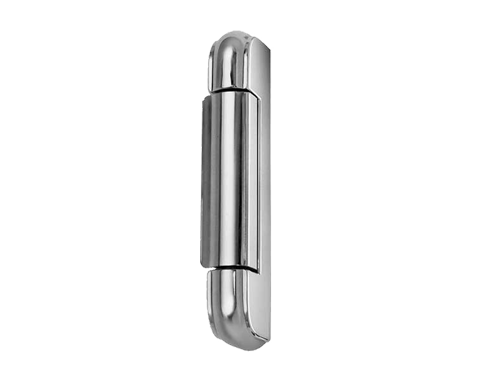

0214 ADJUSTABLE HINGE

  • Mounts close to refrigerator door. Requires minimum jamb width
  • Adjustment range is 1/8" (3.2 mm)
  • Easy, positive adjustment by loosening mounting screw and resetting serrated adjustment plate
  • Interchangeable for right or left-opening door

US Trademark: 2,374,415

Specifications

MATERIAL

High pressure, die-cast zinc flange and adjustment plate, brass cover, zinc plated steel strap.

FINISH

Polished chrome.

OFFSETS

See ordering information.

ADJUSTMENT RANGE

1/8" (3.2 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

20 each

WEIGHT

Approx 11 lb (5.0kg) per carton
