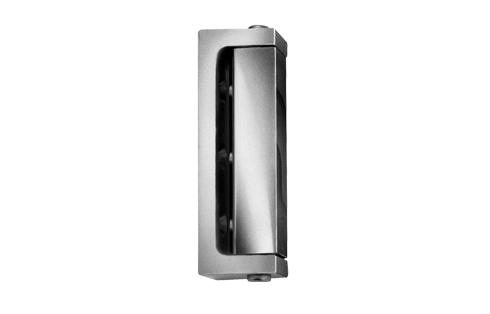

0225 HI-TEMP RESISTANT HINGE
  • Ideal for high temperature applications up to 450°F (232°C)
  • Anodized finish retards discoloration
  • Adjustable to compensate for gasket compression
  • Interchangeable with Kason No. 1216 edgemount hinge
  • Interchangeable for right or left-opening door
Specifications

MATERIAL

Extruded aluminum flange, die-cast zinc adjustment plate, zinc-plated steel strap, stainless steel cover and pins.

FINISH

Anodized aluminum flange, chrome cover.

OFFSET

See ordering information.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 12 (5.5 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

36 each

WEIGHT

Approx. 14 lb. (6.3 kg) per carton
