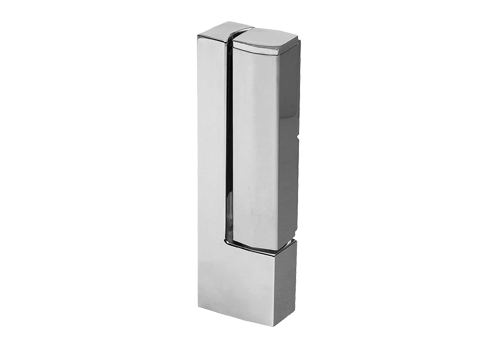

1367R UNIVERSAL REPLACEMENT CAM RISE HINGE

  • Fully-assembled, standard mounting hinge
  • Self-lubricating Zytel cam allows door to close automatically or to stay open at 120°
  • Strap adjustment compensates for gasket compression
  • Cam reverses for right or left-hand opening door
  • Lift-off feature permits door removal with hinges in place for cleaning or service
  • Accepts optional micro switch for automatic control of electrical device

OPTIONAL MICRO SWITCH

  • Compact switch for automatic control of light, fan or other electrical device
  • Fits within base of hinge
  • Leads attached for easy installation
  • Order hinge and switch separately
  • Consult factory for UL Recognized Component certifications
  • Single pole double throw 5 amp at 250VAC, comes with three leads (N/O and N/C) or two leads (N/C)
Specifications

MATERIAL

High pressure, die-cast zinc flange, strap and adjustment plate; brass cover

FINISH

Polished chrome

LOAD RATING

See Hinge Selector Chart, Group C.

OFFSET

3/16" (4.8 mm)

ADJUSTMENT RANGE

1-5/8" (41.3mm) to 2-3/8" (60.3mm)

MOUNTING

Flange and strap drilled and countersunk for No. 12 (5.5mm) flat head screws.

PACKAGING

50 hinges per carton

WEIGHT

Approx. 38.5 lb. (17.5 kg) per carton
