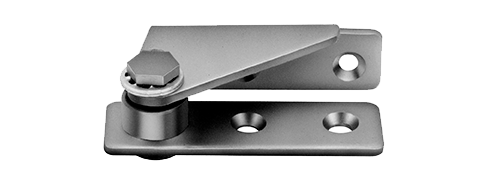

1512 HORIZONTAL FACE-MOUNTED PIVOT HINGE

  • Use on reach-in and pass-through doors for almost any application.>
  • Fully interchangeable. Use in combination with each other or with any Kason horizontal face-mounted pivot hinges
  • Mounts upper left or lower right
Specifications

MATERIAL

Heavy gauge steel.

FINISH

Heavy duty chrome plate.

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

PACKAGING

50 per carton

LOAD RATING

See Hinge Selector Chart, Group B.

WEIGHT

Approx. 18 lb. (8.2 kg) per carton
