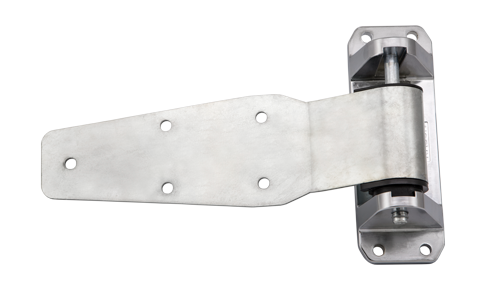

1278 HIGH-RISE HINGE

  • Industry standard self-closing cam-rise hinge
  • Heavy-duty face mount hinge
  • High rising spiral cams. Total rise 7/8”
  • Holds open dwell at 105°
  • Through-pin flange design
  • Raises door fast to create greater closing momentum, reduce closing drag, and reduce wear on sweeper gasket

U.S. Patent Nos: 8,407,859; 8,505,166; 8,621,715 & D-658,031

Specifications

MATERIAL

Steel strap, pivot pin, and fastener “C” ring with composite cam, follower, and top bearing

FINISH

Kasonized (zinc-plated). Powder coat available

MOUNTING

Drilled and countersunk to accommodate 3/8” fasteners

PACKAGING

4 each

LOAD RATING

See Hinge Selector, Group G

WEIGHT

26 lb. (11.7kg)
