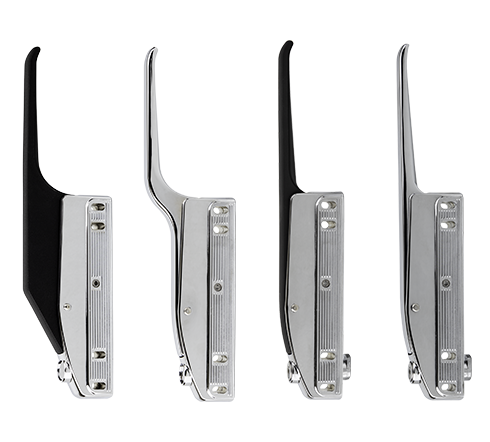

0171 SERIES MAGNETIC LATCHES
  • Versatile family offers multiple choices for heated and refrigerated applications
  • Four handle styles in locking and non-locking models
  • Powerful magnetic force assures positive, air-tight door closure
  • Kason ‘breaker action’ quickly releases magnet for fast door opening
  • Two-way adjustment adapts latch for changing door alignment
  • Adjustable latch body compensates for gasket wear
  • Strike adjusts vertically to accommodate door sag on locking models
  • Fast installation

US Trademark: 2,319,965

Specifications

MATERIAL

High pressure die-cast zinc body and adjustment plate; zinc die-cast or glass reinforced composite handle; one piece steel strike.

MOUNTING:

Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) screws.

HANDLE STYLES

Offset, straight, straight with vinyl sleeve.

LOCK SELECTION

Key cylinder lock or knob turn. Non-cylinder latches can be converted to cylinder locking. Cylinder locks may be keyed alike or differently; 4 key changes available; please specify.

STANDARD MAGNET

Nitrile material; holding force approx. 50 lb. (222.0 N).

PACKAGING/WEIGHT:

See ordering information.

CERAMIC MAGNET:

Holding force of approximately 100 lb. (445.0N); Recommended for temperature applications above 280°F (138.8°C) or where greater loading power is required

FINISH

Polished chrome latch body; black composite or polished chrome handle.
