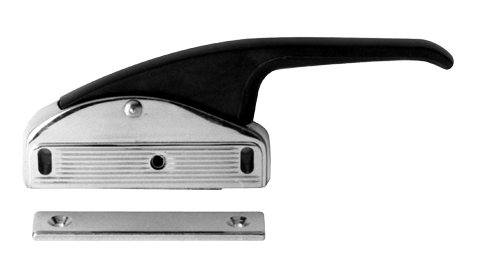

0544 COMPACT MAGNETIC EDGEMOUNT LATCH
  • Compact size for smaller heated cabinets where space is limited
  • Non-heat conducting composite, offset handle
  • Kason’s time-tested magnetic latching system
  • Breaker action releases magnet for easy opening
  • Operates smoothly with handle mounted up or down
  • Not affected by door sag
  • Use on right or left-opening doors

US Registered Trademark 4,906,919

Specifications

MATERIAL

High pressure die-cast zinc body; glass reinforced composite handle; steel strike.

FINISH

Polished chrome latch body, chrome strike; black composite handle.

PathoGuardTM treated antimicrobial handles available. Consult your Kason representative.

STANDARD MAGNET

Chemical-resistant Nitrile – holding force approx. 40 lb. (178 N).

OPTIONAL HI-TEMP MAGNET

Ceramic – holding force of 80 lb. (356N). Recommended for temperature applications above 280°F (138.8°C ) or where greater holding power is required.

MOUNTING

Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) flat head screws.

PACKAGING

12 per carton

WEIGHT

21 lb. (9.5 kg) per carton
