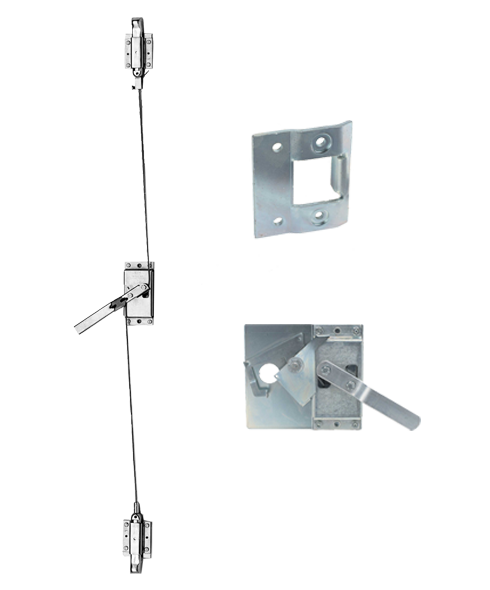

0168 REAR DOOR LATCHING SYSTEM

  • Slam & Take-up Latch with adjustable cable
  • Finger Pull Latch, available
  • Mortise Lock Adapter Kit option available
  • Locking and Non-locking systems
  • Use with No.168 Series exterior handles

0168-01 ADJUSTABLE INTERIOR CABLE LATCH

  • Easy working latch for medium and heavy-duty truck doors
  • Opens door from inside truck, even with the handle locked
  • Tough, flexible steel cable adjusts to fit any door length and provides smooth, rattle-free operation

168-05 STRIKE PLATE

  • For use with No. 0168-01 latch
  • Can be used at top and bottom of door opening.

MORTISE CYLINDER LOCK ADAPTER KITS

  • Extra security for No. 168 latching system
  • Tamper resistant. With mortise lock secured, door remains locked when handle is tampered with, even if handle is broken off
  • Accepts standard mortise cylinder lock

HOW TO ORDER

  • 168-06 - Adapter for thin door
  • 168-07- Adapter for thick door
  • See ordering information on following page

0168WL-06 LATCH KIT

  • No.168-01 interior latch with mortise lock adapter kit
Specifications

MATERIAL

Heavy gauge steel center mechanism and end points; aluminum handle; aircraft-type, 3/32" (2.4 mm) galvanized steel cable with vinyl covering

FINISH

Kasonized end points

END POINTS

One fixed and one adjustable

MOUNTING

Drilled for 1/4" (6.0 mm) screws

OPTION

Also available with fixed cable or eyelet cable, length to specification

TO ORDER

Exterior handles and ordering information is found in the catalog
