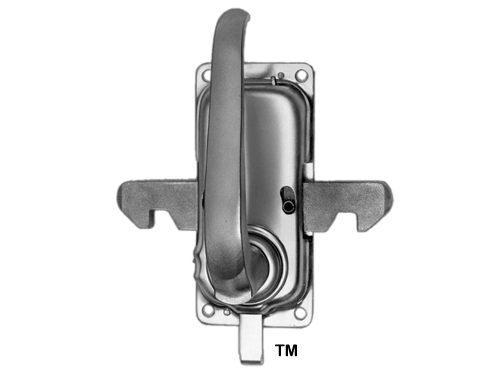

4000 SLIDING DOOR INTERIOR LATCH

  • The choice of major fleets
  • Accepts all 3/8" (9.5mm) square-shank handles
  • Features manual inside slide lock
  • Proven tongue action for secure closure
  • Refined mechanism assures easy unlocking
  • Double tongue construction adapts latch for right- or left-hand doors
  • Sliding door latch with easy-grip handle
  • Maximum projection 3-13/32" (86.5mm)
Specifications

MATERIAL

Wrought steel latch, malleable iron tongue, high-pressure die-cast zinc handle.

FINISH

Kasonized.

MOUNTING

Drilled for 1/4 (6.0mm) screws.

COMPATIBILITY

Accommodates handle with 3/8 (9.5mm) square shank.

COMPLIANCE

Meets FMV206 safety requirements when used with appropriate handles and strike.
