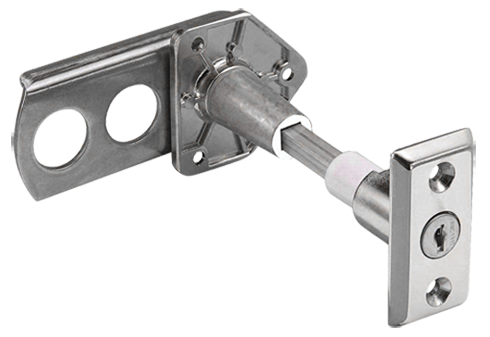

0948C CYLINDER LOCKING INSIDE RELEASE SYSTEM
0948 Locking Inside Handles
  • Tamper-resistant cylinder locking system complements any pull handle or latch system
  • Mounts entirely on door, so not affected by door sag
  • Cylinder mounts with one-way slotted screws for extra security
  • Turn of the lever unlocks or re-locks door from inside; no parts to remove or re-position

U.S. Patent No. 5,272,931

Specifications

MATERIAL/FINISH:

LOCK - Die-cast zinc/polished chrome

INSIDE RELEASE - Metal hub and flange, stainless steel arm and bolt, nylon bushing and shaft, polypropylene strike

MOUNTING:

Mounts through door with No. 10 (5.0mm) flat head screws

PACKING:

24 per carton

WEIGHT:

23.2 lb. (10.5kg) per carton

SHAFT LENGTH:

Standard for 4" (101.6mm) door thickness. Custom lengths available; specify door thickness when ordering
