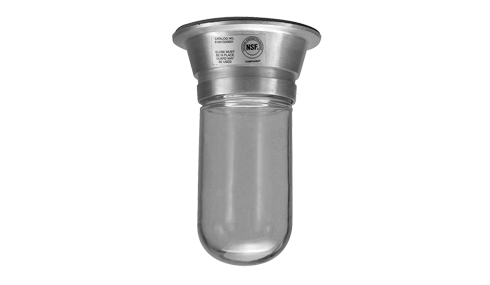

1801 QUICK-MOUNT HOOD FIXTURE

  • Quick-mount base installs to junction box in one-third the time of standard surface mount fixture
  • Sanitary, rustproof cast aluminum fixture
  • Impact and thermal shock-resistant, clear tempered or coated glass globe
  • Easy mounting to standard junction box
  • Meets requirements for NFPA Code 96 and NEC 410

MOUNTING

  1. Fasten supplied cover plate to your utility box
  2. Line up keyholes in housing with long mounting screws supplied with cover plate
  3. Twist housing to lock
  4. Tighten screws
Specifications

MATERIAL

Die-cast aluminum alloy body, brushed finish.
Clear tempered or coated glass globe.
Porcelain socket, nickel-plated copper shell.
Silicone gaskets.

POWER

120 V, 50/60 Hz

ELECTRICAL

Wire leads are 6" (152mm) long.
Maximum 100 W bulb (not included).

SIZE

Housing and globe, 5-1/2” dia. x 8-1/2” high (140x216 mm).

MOUNTING

Mounts to standard 3-1/2" (89mm) or 4" (102mm) junction box.

SAFETY STANDARD

UL listed, File No. E57013
