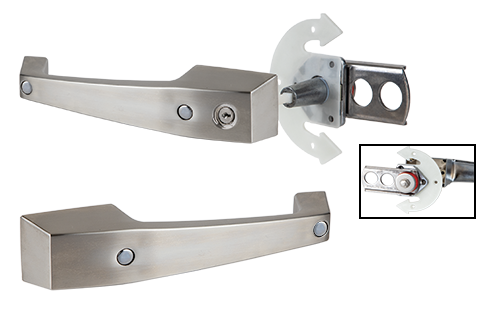

1229 SAFEGUARD® HANDLE SERIES

  • Fully door-mounted to assure locking regardless of door sag
  • Complete with revolutionary high strength, low maintenance inside safety release system
  • Installs on either right- or left-opening door with no modification
  • Handle is furnished with screw hole plugs for tamper-resistance
  • Freezer Kit* available for low temp application

U.S. Trademarks: 2,166,710 & 5,272,931

1229 NON-LOCKING HANDLE

  • Non-locking handle only

1229S SAFEGUARD® HANDLE

  • Rugged, sanitary 316 stainless steel handle for use on walk-in coolers/freezers
  • Both locking and non-locking model available in satin finish
  • Cylinder locking model uses a 948 Inside Release for emergency egress
  • Can be locked and unlocked from inside the enclosure
  • System functions regardless of door sag
  • Standard order includes optional freezer kit

FREEZER KIT

*Kit consists of plastic cap to cover rod, gasket for handle flange and special instructions for low temperature installations. Application of the specified low-temp grease seals the unit to prevent accumulation of moisture.

U.S. Patent No. for ISR Glow Plate: D959,218

Specifications

MATERIAL

PULL HANDLE: High pressure die-cast zinc.

INSIDE RELEASE: Metal hub and flange, stainless steel arm and bolt, nylon shaft, polypropylene strike.

MOUNTING

PULL HANDLE: Drilled and countersunk for 1/4" (6.0mm) fillister head or No. 12 (5.0mm) self-tapping screws.

INSIDE RELEASE: Holes drilled and countersunk for No. 10 (5.0 mm) flat head screws.

SHAFT LENGTHS:

Standard lengths for door thickness from 3-1/2" to 4" (88.9 mm to 101.6mm). Please specify door thickness. Custom lengths available to specification. Minimum wall thickness 2-1/4" (57mm).
