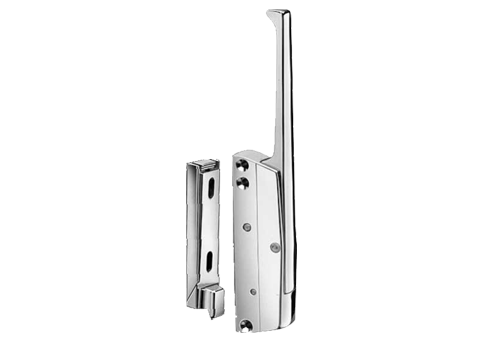

0172 MAGNETIC-MECHANICAL LATCH

  • Magnetic force combined with mechanical latching provide the ultimate in positive door closure and sealing
  • Latch releases with ease
  • Mechanical latching with cylinder lock offers positive security
  • Keeps door shut even when adjacent doors are slammed
  • Two-way strike adjustment compensates for door-sag and gasket wear
  • Unique design of strike ensures full magnetic attraction at each adjustment

U.S. Trademarks: 5,923,931 & 5,923,932

Specifications

MATERIAL

High pressure die-cast zinc body, handle and strike.

FINISH

Polished chrome.

HANDLE STYLES

Straight, offset.

LOCK SELECTION

Cylinder or non-cylinder locking.

PACKAGING

12 per carton

WEIGHT

25 Lb. (11.4 kg) per carton

MOUNTING

Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) screws.

RESOURCES
Catalog
