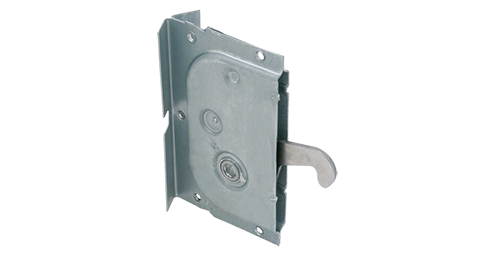

1173 COMPACT LOCKING POINT
- Narrow-wing locking point combined with No.1173 strike provides solid lock-up for molded foam-insulated panels as thin as 1-1/2" (38.1mm)
- Wing span is 1-13/32" (35.7mm)
- Finished panels assemble with No. 1145 hex wrench
- Use with No. 1169L adapter
Specifications
MATERIAL
Locking Points - steel housing and hook, high pressure die-cast cam
Strikes - steel housing and pin
FINISH
Special wash for improved foam adhesion
