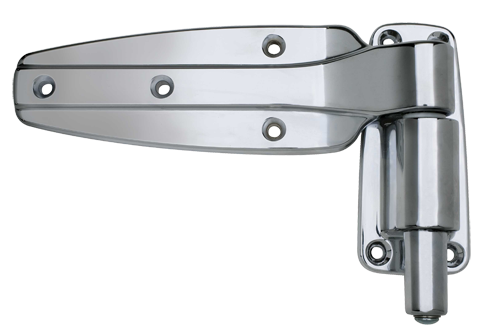

1248 SPRING ASSISTED HINGE
- Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors
- Special high-lift cam system outperforms similar spring hinges
- Cam-rise action reduces gasket wear, even with irregular floors
- Built-in dwell holds door open beyond 130°
- Simple manual operation reverses hinges for use on right or left-opening door
U.S. Trademark: 2,415,070
Specifications
MATERIAL
High pressure die-cast zinc with self-lubricating nylon cam.
FINISH
See Catalog. Powder coat also available.
LOAD RATING
See Hinge Selector, Group D.
MOUNTING
Drilled and countersunk for 1/4" (6.0mm) flat head screws.
WEIGHT
Approx. 19.5 lb (8.85 kg) per carton
PACKAGING
6 each
