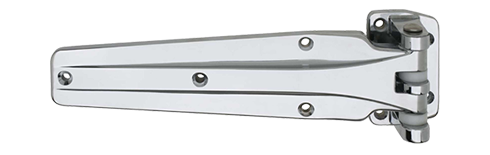

1251 HEAVY DUTY DOUBLE KNUCKLE HINGE

  • Longer version of Kason 1241 hinge
  • Exclusive ribbed underside construction reduces weight while adding strength

U.S. Trademark: 2,277,203

Specifications

STRAP LENGTH

12" (304.8mm).

MATERIAL

High pressure die-cast zinc with stainless steel pin and nylon bearings.

FINISH

Polished chrome.

OFFSETS

See Catalog

MOUNTING

Holes drilled and countersunk for 1/4" (6.0mm) screws.

LOAD RATING

See Hinge Selector, Group D.

PACKAGING

4 each

WEIGHT

15.4 lb (7.0kg) per carton
