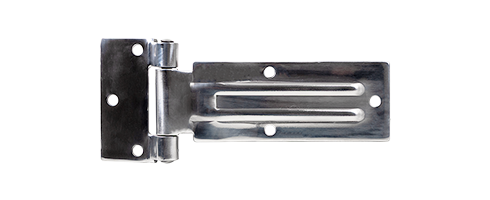

1342 STRAP HINGE
Designed for industrial equipment and containers
Specifications
MATERIALS
304 stainless steel hinge
DESIGN CRITERIA
Opening/Closing Angle: 180°
Installation Method: Drilling holes
Maximum Radial Load: 1169 LBF (5.2 kN)
Drilled for 5/16” (8 mm) diameter fasteners
Safe working load for Group ‘G’ Hinge = 9,900 in-lb resisting moment per pair, per the Kason Hinge Selection Chart (Ex: 60” door, max weight of 320 lb = 60/2 x 320 = 9,600 in-lb (OK))
