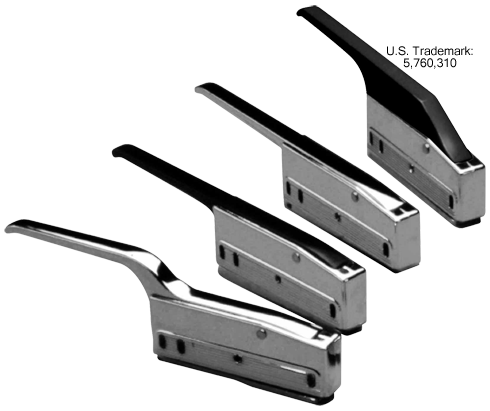

0170 SERIES MAGNETIC LATCHES

  • Satisfies NSF standards for all applications
  • Four handle styles
  • High strength magnetic force keeps door closed and accommodates variations in cabinet construction
  • Kason ‘breaker action’ quickly releases magnet for fast door opening
  • Adjustable latch body compensates for gasket wear
  • Not affected by door sag

STANDARD MAGNET

  • Nitile material; holding force approx. 50 lb. (222 N).

OPTIONAL CERAMIC MAGNET

  • Holding force of 100 lb. (445 N); recommended for temperature applications above 280°F (138.8°C) or where greater holding power is required.

U.S. Patent No. 11,261,627

Specifications

MATERIAL

High pressure die-cast zinc body and adjustment plate; zinc die-cast or glass reinforced composite handle; steel strike with nylon spacer.

FINISH

Polished chrome latch body; black composite or polished chrome handle.

PathoGuardTM treated antimicrobial handles available. Consult your Kason representative.

HANDLE STYLES

Straight, offset.

MOUNTING

Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) screws.

RESOURCES
Catalog
