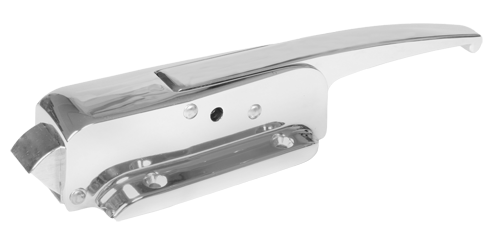

0078 SAFEGUARD® RADIAL LATCH

  • Radial tongue makes for effortless door closure when combined with Kason door closers
  • Meets 2009 Federal Energy mandate requirements for door seal when used with a Kason door closure
  • Works effectively with our 56 or 59 series adjustable strike assemblies
  • Padlock option standard for all models
  • Cylinder option available for all models

U.S. Patent Number: D-649,861

U.S. Trademark: 5,760,311

Specifications

MATERIAL

High pressure die-cast zinc

FINISH

Three available finishes - Polished chrome, brushed chrome, or Silver Powder Coat

PACKING/WEIGHT

6 body assemblies/approx. 16 lb. (7.3kg) per carton

6 strike assemblies/approx. 7 lb. (3.2kg) per carton

MOUNTING HOLES

Drilled and countersunk for 1/4" (6.0mm) screws

INSIDE RELEASE:

Only accepts "C" series rods
