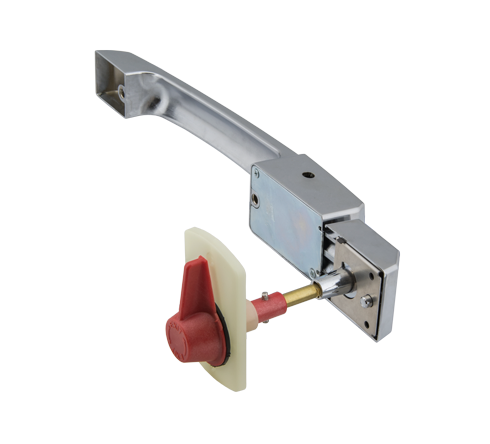

0485 1/4 TURN LOW CONDUCTION INSIDE RELEASE

  • Prevents entrapment in Walk-In coolers and freezers
  • Occupants can exit easily and quickly by using the 1/4 turn lever, should the door be locked from the outside
  • Meets ADA requirements for emergency egress
  • Large glow in the dark surface provides better visibility in low-light or emergency situations
  • Accommodates up to 3/8” jamb thickness variation (or self-adjusting to accommodate various wall thicknesses.)
  • Thermal break separates the brass rod from the cold zone of freezer to eliminate sweating on the strike
  • Inside mechanism permanently mounts inside jamb
  • Includes alignment plate for outside strike to maintain proper alignment in field
  • Tethered connection included for outside strike lock mechanism
  • Shorter lever than previous ¼ turn levers; does not protrude into door opening after actuation
  • Retrofit adaptation available for all flush installations of 0027 Latch

U.S. Patent Nos: D-813,644

Specifications

MATERIAL

Strike - Die cast Zinc, Polished Chrome, Brushed Chrome, or Powder Coat Paint
Alignment Plate - Aluminum
Gasket - Foam Rubber
Base Plate - Polypropylene
Hole plug - ABS
Rod - Brass
Lever - Polycarbonate
Pins - Stainless steel

PACKAGING

4 per carton

WEIGHT

0.8 lbs (362.8 gm)
