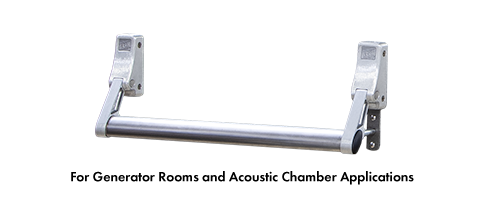

0488L PANIC BAR INSIDE RELEASE AND LATCH ASSEMBLY (UL 305 CERTIFIED)
- UL305 and Can/ULC-S132 certified panic device
- Stainless steel and aluminum materials for non-corroding construction
- Crossbar design provides a large contact area for opening door
- Ergonomic design provides simple low-effort operation
- Accommodates left and right handed doors
- Certified for doors up to 4’ x 7’ (width x height)
- Temp range: -40°F to 150°F (-40°C to 65°C)
- Tested to UL305 & Can/ULC-S132 standard for panic devices
- Models available for flush through 1-5/8” offset doors
- Designed for 1/4” mounting screws
Specifications
MATERIAL
Cross bar: 304 stainless steel
Mounting brackets: 304 stainless steel
Push rod: 303 series stainless steel
Cover: Die-cast aluminum
Pivot arm: Die-cast aluminum
Hardware: Stainless steel
Pin: 304 stainless steel
Springs: Music wire
End caps: Black polyethylene
Bearings: Bronze
