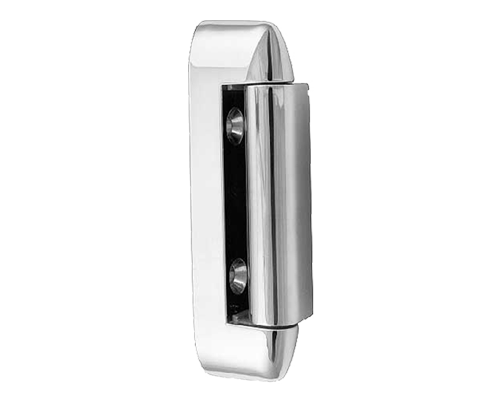

0211 SLIMLINE HINGE

  • Streamlined styling for lightweight doors
  • Smooth operation with self-lubricating nylon bearing
  • Adjusts easily to compensate for gasket wear
  • Interchangeable for right or left-opening door
Specifications

MATERIAL

High pressure, die-cast zinc.

FINISH

Polished chrome plated.

ADJUSTMENT RANGE

3/16" (4.8 mm).

OFFSET

1-1/4" (28.6 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

100 per carton

WEIGHT

See order information
