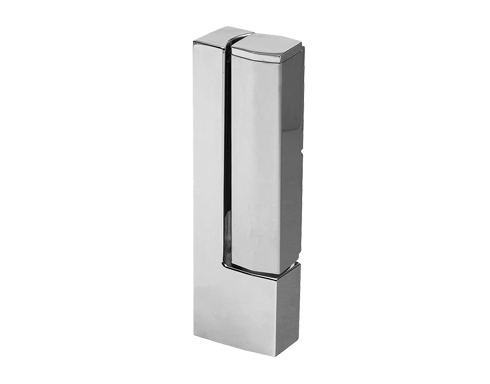

1467R DOUBLE ADJUSTABLE CAM-RISE HINGE

  • Sag-compensating hinge assures correct door alignment the first time, all the time
  • Easy flange adjustment positively locks into place after aligning door, so hinge holds firmly in place
  • Eliminates floating tapping plates; shims and twisted hinges
  • Traditional strap adjustment compensates for gasket compression
  • Interchanges in whole or in part with other suppliers’ edgemount, cam-rise hinges
  • Reversible for right or left-hand door mounting
  • For fan and light control, hinge accepts easy-to-install low maintenance internal micro switch or a traditional plunger switch

OPTIONAL MICRO SWITCH

  • Compact switch for automatic control of light, fan or other electrical device
  • Fits within base of hinge
  • Leads attached for easy installation
  • Order hinge and switch separately
  • Consult factory for UL Recognized Component certifications

US Patent Number: 6,374,458

Specifications

MATERIAL

High Pressure die-cast zinc flange, strap, and adjustment plates; stainless steel cover.

FINISH

Polished chrome.

OFFSET

3/16" (4.8 mm).

ADJUSTMENT RANGE

1 5/8" (41.3mm) to 2 3/8" (60.3mm).

MOUNTING

Flange and strap drilled and countersunk for No. 12 (5.5 mm) flat head screws.

PACKAGING

40 per carton.

LOAD RATING

See Kason Hinge Selector Chart, Group C.

WEIGHT

Approx. 38.5 lb (17.5 kg) per carton

SWITCH

Single pole double throw 5 amp at 250VAC, comes with three leads (N/O and N/C) or two leads (N/C)
