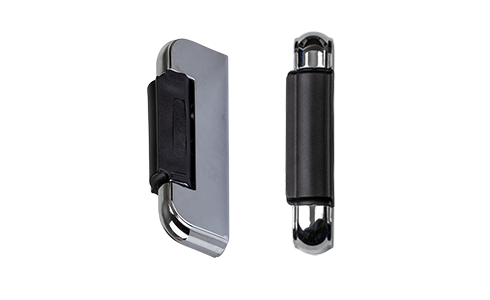

0217SB ADJUSTABLE HINGE
- Integrated heavy-duty, 90° cushioned stop
- Symmetrical for use on left or right-handed opening doors
- Cover assembly can be retrofitted to any existing 0217/0218/0220 style installation
U.S. Trademark 2,437,925
U.S. Patent 12,607,054
Specifications
MATERIALS
Flange: Chrome-plated zinc, available with powder coat
Adjustment: Zinc
Strap: Plated Steel
Cover: Black TPU
DESIGN CRITIERIA
Mounting: Drilled and countersunk for No. 10 (5.0 mm) screws
Load Rating: Max moment 1200 in-lb
