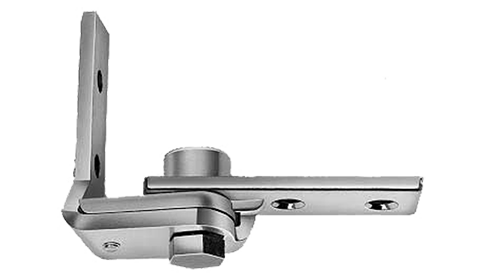

1521 PIVOT HINGE

  • Smooth, self-closing operation
  • Dwell stop holds door open at 105° as long as required
  • For doors with minimum 1-3/4" (44.5 mm) offset
  • Top and bottom assemblies have identical hole sizes and spacing
  • Use standard, pre-punched door pans for right or left installation
  • Adjustable spring tension cartridge installs in 3/4" (19.0 mm) diameter round opening
Specifications

MATERIAL

Heavy gauge steel; high pressure die-cast zinc cartridge

FINISH

Chrome

OFFSET

1-3/8" (39.9 mm)

MOUNTING

Spring cartridge drilled and countersunk and pivot flange drilled for No. 10 (5.0 mm) screws.

Features dwell stop. Use with No. 1522 Too Hinge.

LOAD RATING

See Hinge Selector Chart, Group B.
