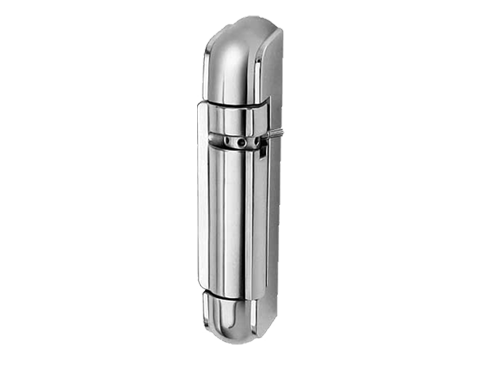

0218 ADJUSTABLE SPRING HINGE

  • Removable spring cartridge
  • Powerful spring tension adjusts easily to provide needed closing force
  • Ideal for self closing refrigerators
  • Adjusts with serrated adjustment plate to compensate for gasket compression
  • Interchangeable for right or left open door

US Trademark: 2,437,925

Specifications

MATERIAL

High pressure, die-cast zinc flange, adjustment plate and spring cartridge; zinc plated steel strap.

FINISH

Polished chrome.

OFFSETS

See ordering information.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group B.

PACKAGING

24 each

WEIGHT

Approx. 33 lb. (15.0 kg) per carton
