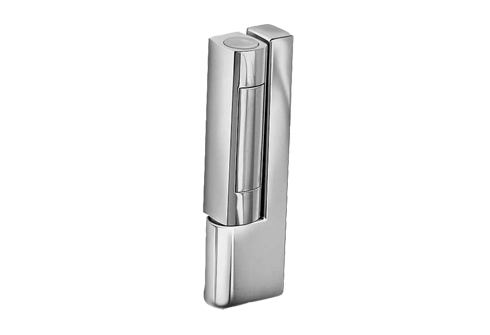

1247 CAM RISE HINGE

  • Self-closing hinge has built-in dwell that holds door open at 93°
  • Lift-off feature allows door to be removed with hinges in place
  • Adjusts for gasket compression
  • Reversible for right or left-opening door

1257 SPRING HINGE

  • Same specifications as 1247 with spring feature
Specifications

MATERIAL

High pressure, die-cast zinc flange, strap and adjustment plate; stainless steel cover; steel pin

FINISH

Polished chrome

MOUNTING

Flange drilled and countersunk for No. 12 (5.5 mm) flat head screws; strap drilled for No. 12 (5.5 mm) round head screws

PACKAGING

36 each

OFFSETS

See ordering information

LOAD RATING

See Hinge Selector Chart, Group C

WEIGHT

Approx. 45 lb (20.4kg) per carton
