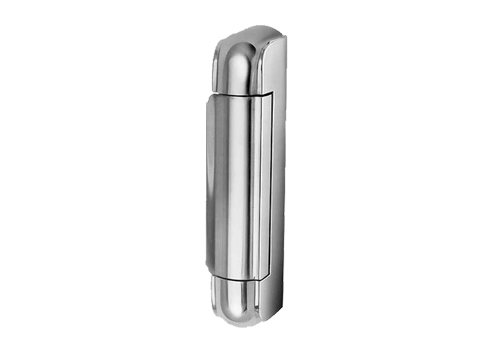

0220 SPRING HINGE

  • Heavy-duty, long wearing design
  • Fully round pivot pin assures trouble-free operation and long life
  • Spring tension adjusts quickly on site
  • Adjustable to compensate for gasket compression
  • Interchangeable for right or left-opening door

220S STOP HINGE

  • Same as No.0220 except automatically stops door when opened 120°.
  • Also available with 90° stop.
  • Minimum order quantity may apply

US Trademark: 2,437,925

Specifications

MATERIAL

High pressure, die-cast zinc flange and adjustment plate, chrome-plated brass cover, zinc plated steel strap.

FINISH

Polished chrome.

OFFSETS

See ordering information.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group B.

PACKAGING

24 each

WEIGHT

Approx. 18 lb. (8.2 kg) per carton
