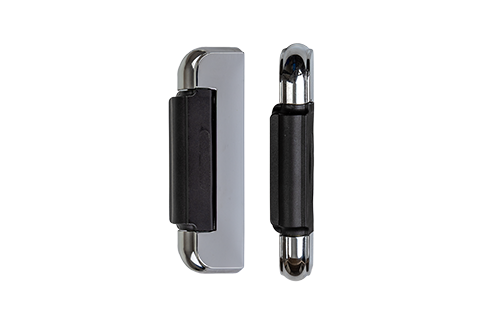

0214SB ADJUSTABLE HINGE
- Integrated heavy-duty, 90° cushioned stop
- Symmetrical for use on left or right-handed opening doors
- Cover assembly can be retrofitted to any existing 0214 style installation
U.S. Trademark 2,374,415
U.S. Patent 12,607,054
Specifications
MATERIALS
Flange: Chrome-plated zinc, available with powder coat
Adjustment Plate: Zinc
Strap: Plated Steel
Cover: Black TPU
DESIGN CRITERIA
Mounting: Drilled and countersunk for No. 10 (5.0 mm) screws
Load Rating: Max moment 690 in-lb
