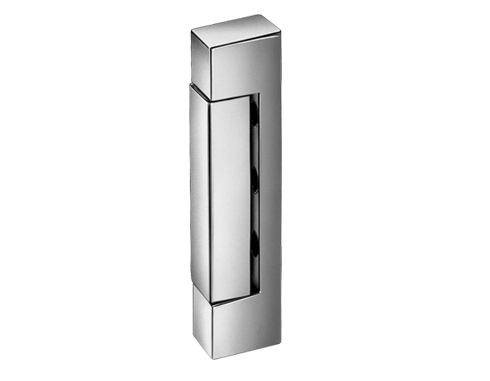

1219 ADJUSTABLE HINGE

  • Mounts close to refrigerator door. Requires minimum jamb width
  • Offset adjusts 1/8" (3.2 mm) in-and-out to compensate for gasket compression as needed
  • Easy to adjust by loosening mounting screw and resetting serrated adjustment plate
  • Interchangeable for right or left-opening door
Specifications

MATERIAL

High pressure, die-cast zinc flange and adjustment plate, brass cover, zinc plated steel strap, nylon bushing, stainless steel cover.

FINISH

Polished chrome.

ADJUSTMENT RANGE

1/8" (3.2mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0mm) flat head screws.

LOAD RATING

See Kason Hinge Selector, Group A.

PACKAGING

50 each

WEIGHT

Approx. 27lb. (12.3kg) per carton
