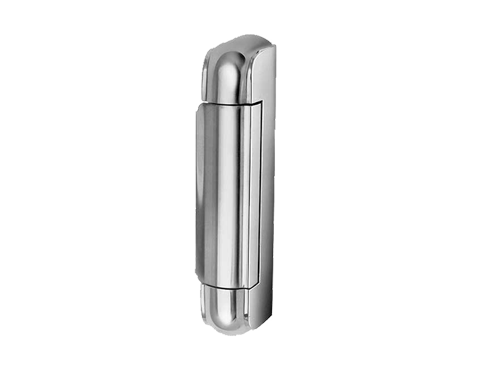

0217 ADJUSTABLE HINGE

  • Larger, heavy duty hinge
  • Choice of three offsets
  • Serrated plate easily adjusts to compensate for gasket compression
  • Interchangeable for right or left-opening door

217S STOP HINGE

Same as No 217, except automatically stops door when opened 120 degrees

US Trademark: 2,437,925

Specifications

MATERIAL

High pressure, die-cast zinc flange and adjustment plate; brass cover, zinc plated steel strap.

FINISH

Polished chrome.

OFFSETS

See ordering information.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group B.

PACKAGING

24 each

WEIGHT

Approx. 18 lb. (8.2 kg) per carton
