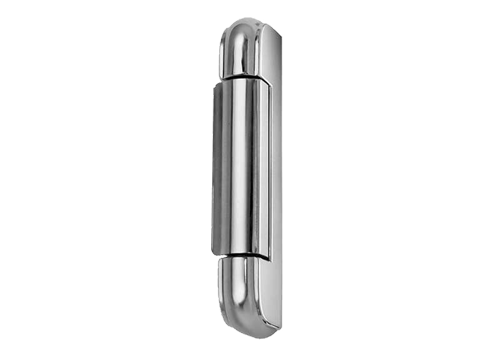

0213 STANDARD HINGE

  • Smooth operation, economy and strength
  • Narrow width saves space, mounts close to door
  • Interchangeable for right or left-opening door

US Trademark: 2,374,415

Specifications

MATERIAL

High pressure, die-cast zinc flange; brass cover, zinc plated steel strap.

FINISH

Polished chrome.

OFFSETS

See ordering information.

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

20 each

WEIGHT

Approx. 8 lb. (3.6 kg) per carton
