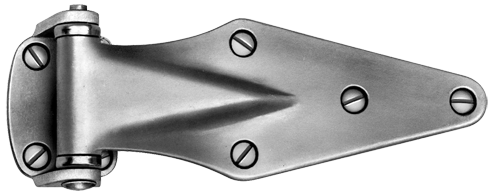

1061 STEEL HINGE

1061 STEEL HINGE

  • Equipped with nylon thrust washers
  • Reversible for right or left hand by removing pin and bearings

1061BB BALL BEARING HINGE

  • Features all metal ball bearing washers for high temperature applications. Other specifications same as 1061.

U.S. Trademark: 5,923,906

Specifications

MATERIAL

Steel.

FINISH

Kasonized.

OFFSETS

See ordering information.

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group C.

PACKAGING

50 per carton

WEIGHT

Approx. 34 lb. (15.5 kg) per carton
