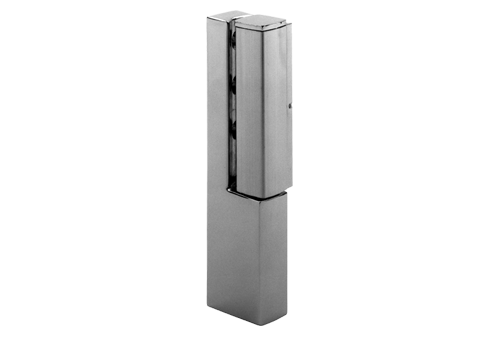

1269 SWITCH-ACTIVATOR HINGE

  • Time-tested cam-rise action combined with automatic control of light, fan or other electrical device
  • Protected, internal switch is operated directly by rise and fall of the hinge strap, assuring foolproof activation
  • Self-closing hinge has built-in dwell that holds door open past 90°
  • Lift-off feature allows door to be removed with hinges in place
  • Simple cam rotation permits use on right or left-opening door
  • Adjustable to compensate for gasket compression
  • Consult factory for UL Recognized Component certifications

Switch

  • Single pole 5 amp at 125VAC contacts on opening. Switch kit includes stainless steel mounting plate and insulating barrier
Specifications

MATERIAL

High pressure, die-cast zinc flange, strap and adjustment plate; brass cover, nylon cam.

FINISH

Polished chrome.

OPTION

Hinge with 120° dwell.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Flange and strap drilled and countersunk for No. 12 (5.5 mm) flat head screws.

LOAD RATING

See Hinge Selector Chart, Group C.

PACKAGING

See order information for component packaging
